应用

高压液体管道（液压油、防冻剂、空气和水）

技术参数

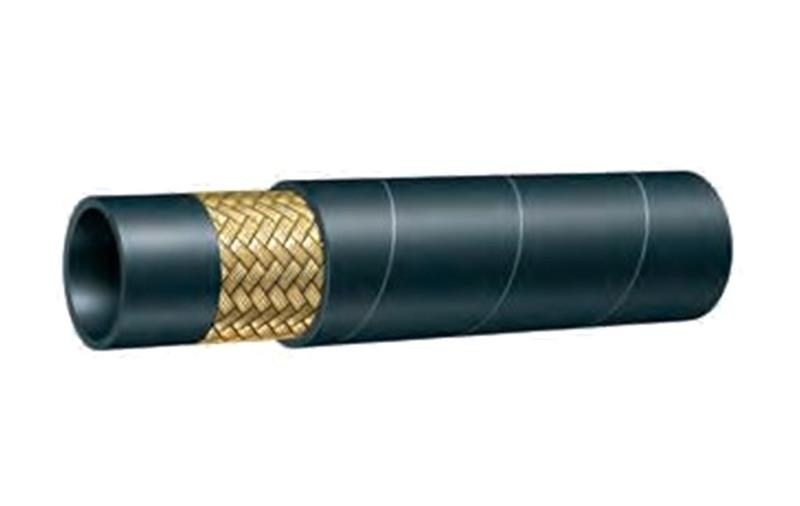

内层：耐油合成橡胶
增强层：一层高抗拉钢丝编织
外层：耐磨损、臭氧，合成橡胶,MSHA认证
温度范围：-40°F to +212°F（-40℃ to +100℃）
用于空气最高温度T=+70℃(+160°F )
应用标准：ISO 1436-1-SAE 100 R1AT/R1S,EN853 1SN

product details

软管代号 公称内径 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径 重量
PART NO. mm DASH inch mm mm MPa MPa mm g/m
R1T-04 6 -4 1/4" 6.6 13.5 22.5 90.0 60 230
R1T-05 8 -5 5/16" 8.1 15.0 21.5 86.0 65 270
R1T-06 10 -6 3/8" 10.0 17.1 18.0 72.0 70 325
R1T-08 12 -8 1/2" 13.0 20.4 16.0 64.0 80 420
R1T-10 16 -10 5/8" 15.9 23.8 13.0 52.0 110 500
R1T-12 19 -12 3/4" 19.0 27.5 10.5 42.0 130 655
R1T-16 25 -16 1" 25.4 35.9 8.8 35.2 170 830
R1T-20 31 -20 1 1/4" 31.8 43.1 6.3 25.2 210 1180
R1T-24 38 -24 1 1/2" 38.1 50.2 5.0 20.0 240 1455
R1T-32 51 -32 2" 50.8 63.5 4.0 16.0 310 2015
R1T-40 64 -40 2 1/2"
 63.5 76.5 4.0 20.0 762 2535
R1T-48
 76 -48 3"
 76.2 88.5 3.5 16.0 900 2710
