Hydraulic Parts

Our company provide SUNFLEX brand High pressure braided hose, high pressure spiral hose, produce and develop hose crimping joints, transition joints, stainless steel joints and all kinds of non-standard joints. Being widely used in Construction Machinery, tunnel construction machinery, special vehicle, oil, electric power, mine, metallurgy, shipbuilding,…etc.

Hydr

Industry search

应用

适用于输送石油基液压油、醇、燃油、润滑油、乳化液等

技术参数

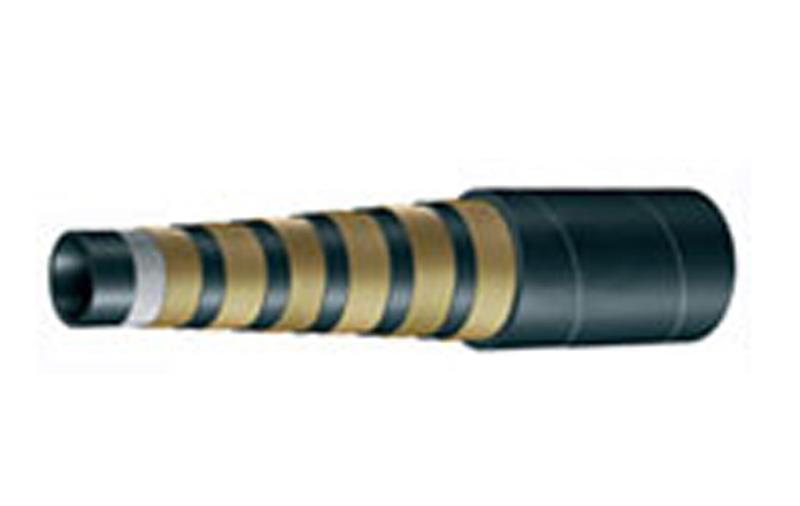

内胶层：一层耐油合成橡胶
增强层：六层钢丝缠绕
外胶层：一层耐油耐气候合成橡胶
耐温范围：-40°C~+100°C

product details

软管代号 公称内径 软管尺寸 软管内径 软管外径 最大工作压力 最小爆破压力 最小弯曲半径 重量
PART NO. mm DASH inch mm mm MPa MPa mm g/m
R15B-06 10 -6 3/8" 9.5 21.3 42.0 168.0 140 715
R15B-08 12 -8 1/2" 12.9 24.3 42.0 168.0 150 925
R15B-12 19 -12 3/4" 19.2 31.8 42.0 168.0 240 1450
R15B-16 25 -16 1" 25.4 38.8 42.0 168.0 250 2010
R15B-20 31 -20 1.1/4" 31.8 49.7 42.0 168.0 320 3770
R15B-24 38 -24 1.1/2" 38.1 57.8 42.0 168.0 380 5040
R15B-32 51 -32 2" 50.8 71.1 42.0 168.0 480 7390
R15B-40
 65 -40 2.1/2"
 63.5 85.8 35.0 140.0 600 8995
