16Bar 活动法兰胶管接头
法兰参考标准
DIN2633
GB/T 2506-2005

product details
DIN2633
GB/T 2506-2005
代号 16Bar

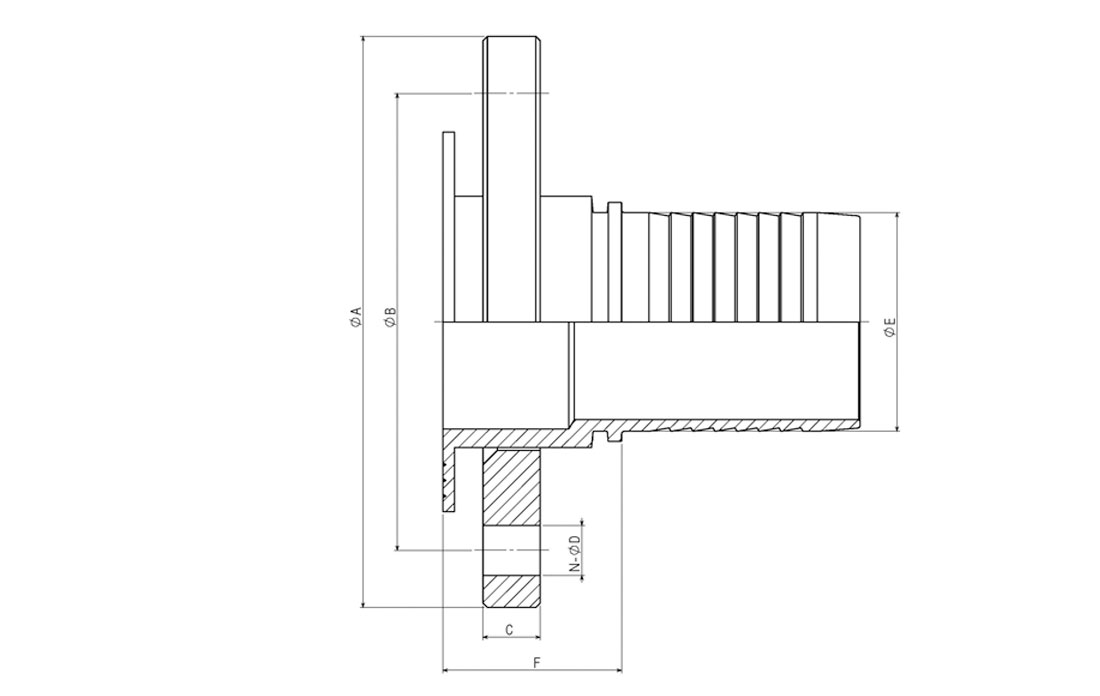

A B D N C F E
W-150-0100-SW-DIN16 115 85 14 4 13 58 25
W-150-0125-SW-DIN16 140 100 18 4 15 58 32
W-150-0150-SW-DIN16 150 110 18 4 15 58 38
W-150-0200-SW-DIN16 165 125 18 4 17 62 50
W-150-0250-SW-DIN16 185 145 18 4 17 62 63
W-150-0300-SW-DIN16 200 160 18 8 17 62 76
W-150-0400-SW-DIN16 220 180 18 8 19 80 102
W-150-0500-SW-DIN16 250 210 18 8 19 97 127
W-150-0600-SW-DIN16 285 240 22 8 21 97 152
W-150-0800-SW-DIN16 340 295 22 12 23 99 203

注：
1、尺寸F为理论尺寸，仅供参考
2、订货前请联系本公司，以作确认
3、如需碳钢以外材质，请参考代号规则
