Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

心轴橡胶管，内层为复合链接聚乙烯，能广泛用于各种化学物品、石油产品（包括芳香物族化合物）

技术参数

内层： 半透明、光滑、链接聚乙烯
增强层：高强度合成芯及螺旋铜丝，抗静电
外层：绿色、光滑三元乙丙（EPDM）橡胶，耐侵蚀，耐臭氧，耐磨损
工作温度：-40℃到+70℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 黄色

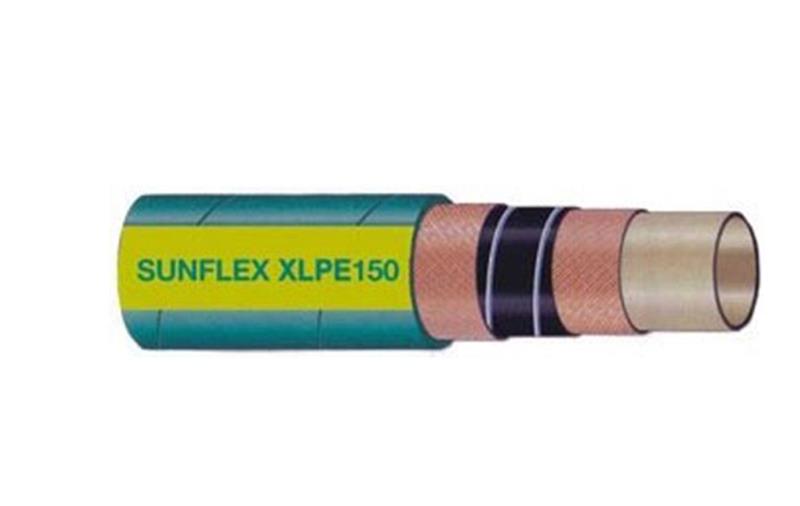

字样： SUNFLEX XLPE 150 MULTI-PURPOSE CHEMICAL HOSE WPSI 150

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar bsi kg/m lbs/ft mm
XLPE150-0075 19 3/4 31 1-7/32'' 10 150 40 600 0.72 0.48 80
XLPE150-0100
 25 1 41 1-39/64 10 150
 40
 600
 1.05 0.68 110
XLPE150-0125
 32 1-1/4 48 1-57/64 10
 150
 40
 600
 1.35 0.91 165
XLPE150-0150
 38 1-1/2 54 2-1/8 10
 150
 40
 600
 1.56 1.04 225
XLPE150-0200
 51 2 67 2-41/64 10
 150
 40
 600
 2.08 1.40 350
XLPE150-0250
 63 2-1/2 81 3-3/16 10
 150
 40
 600
 2.52 1.78 450
XLPE150-0300
 76 3 95 3-13/16 10
 150
 40
 600
 3.61 2.39 608
XLPE150-0400
 102 4 120 4-23/32 10
 150
 40
 600
 4.98 3.26 816
