应用

通用空气管，满足中役型到重役型工程应用，具有一定强度，但不失柔韧性，寿命长，易操作处理。

技术参数

内 层：黑色、光滑、热塑性橡胶（TPR），耐油雾
增强层：高强度合成芯
外层：黑色、光滑热塑性橡胶，耐侵蚀、耐磨损
工作温度：-10℃到+60℃
管长： 100米（330英尺），其它长度也可以按需求提供
印记： 白色

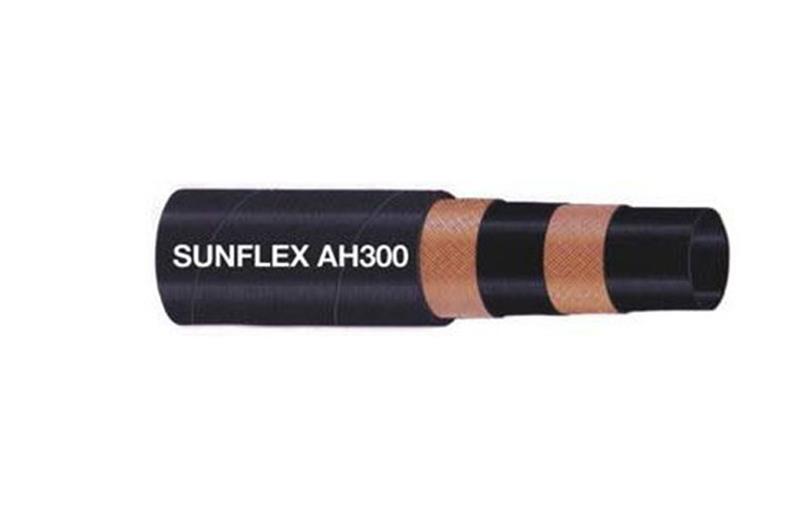

字样： SUNFLEX AH 300 AIR/WATER HOSE WPSI 300

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
AH300-0025-TR 06 1/4 13 33/64 20 300 60 900 0.15 0.11 48
AH300-0031-TR 08 5/16 15 19/32 20 300 60 900 0.18 0.12 64
AH300-0038-TR 10 3/8 18 45/64 20 300 60 900 0.21 0.14 80
AH300-0050-TR 12 1/2 21 53/64 20 300 60 900 0.22 0.16 104
AH300-0063-TR 15 5/8 24 15/16 20 300 60 900 0.27 0.18 128
AH300-0075-TR 19 3/4 29 1-19/64 20 300 60 900 0.44 0.30 152
AH300-0100-TR 25 1 36 1-22/64 20
 300 60 900
 0.53 0.35 200
