Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

通用空气管，满足中役型到重役型工程应用，具有一定强度，但不失柔韧性，寿命长，易操作处理。

技术参数

内 层：黑色、光滑、合成橡胶，耐油雾
增强层：高强度合成芯
外层：黑色、光滑聚合橡胶，寿命长、耐侵蚀、耐磨损
工作温度： -40℃到+85℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 绿色

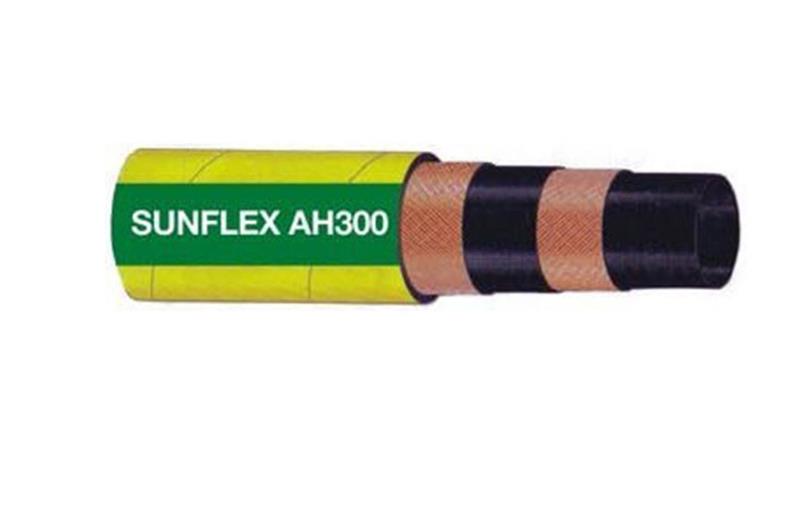

字样： SUNFLEX AH 300 AIR/WATER HOSE WPSI 300

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar pis kg/m lbs/ft mm
AH300-0125 32 1-1/4 44 1-3/4 20 300 60 900 0.85 0.58 300
AH300-0150 38 1-1/2 52 2 20 300 60 900
 1.30 0.80 360
AH300-0200
 51 2 66 2-23/32 20
 300 60 900
 1.52 1.04 450
AH300-0250 63 2-1/2 79 3-7/32 20
 300 60 900
 2.26 1.56 600
AH300-0300 76 3 94 3-25/32 20
 300 60 900 2.22 1.52 750
AH300-0400 102 4 121 4-13/16 20
 300 60 900
 4.00 2.74 1000
