应用

通用空气管，满足中役型到重役型工程应用，具有一定强度，但不失柔韧性，寿命长，易操作处理。

技术参数

内层：黑色、光滑、合成橡胶，耐油雾
增强层：高强度合成芯
外层：黑色、光滑聚合橡胶，寿命长、耐侵蚀、耐磨损
工作温度：-40℃到+85℃
管长：61米（200英尺），其它长度也可以按需求提供
印记：绿色

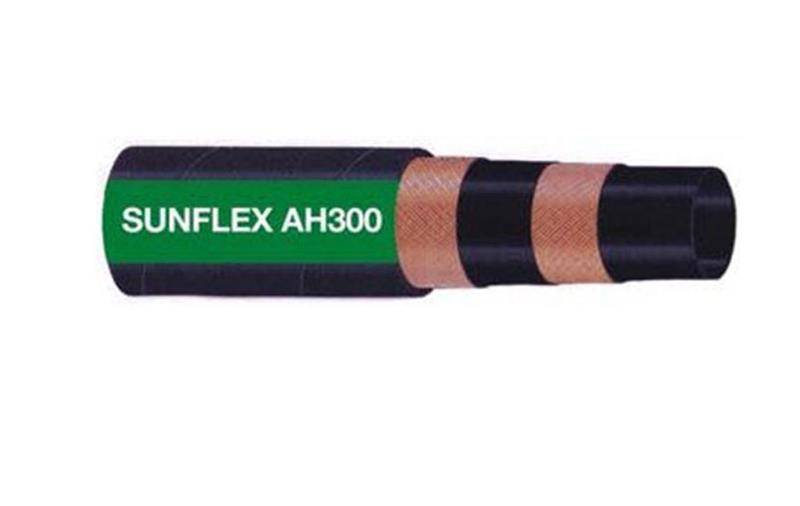

字样：SUNFLEX AH 300 AIR/WATER HOSE WPSI 300

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
AH300-0025 06 1/4 13 33/64 20 300 60 900 0.15 0.11 60
AH300-0031 08 5/16 15 19/32 20 300 60 900
 0.18 0.12 80
AH300-0038
 10 3/8 18 45/64 20
 300 60 900
 0.21 0.14 100
AH300-0050 12 1/2 21 53/64 20
 300 60 900
 0.22 0.16 125
AH300-0063 15 5/8 24 15/16 20
 300 60 900 0.27 0.18 160
AH300-0075 19 3/4 29 1-19/64 20
 300 60 900
 0.44 0.30 190
AH300-0100
 25 1 36 1-22/64 20
 300
 60
 900
 0.53 0.35 230
AH300-0125
 32 1-1/4 44 1-3/4 20
 300
 60
 900
 0.85 0.58 300
AH300-0150 38 1-1/2 52 2 20
 300
 60
 900
 1.30 0.80 360
AH300-0200 51 2 66 2-23/32 20
 300
 60
 900
 1.52 1.04 450
AH300-0250
 63 2-1/2 79 3-7/32 20
 300
 60
 900
 2.26 1.56 600
AH300-0300 76 3 94 3-25/32 20
 300
 60
 900
 2.22 1.52 750
AH300-0400 102 4 121 4-13/16 20
 300
 60
 900
 4.00 2.74 1000
