Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

为采矿，工业，建筑等较为恶劣工作环境特设的产品。该软管具有高安全性，在十分恶劣的工作环境中也能提供长寿命无故障服务。

技术参数

内 层：黑色、光滑、合成橡胶，耐热，耐油雾
增强层：钢丝芯夹层
外层：黄色、光滑聚合橡胶，寿命长、耐侵蚀、耐磨损
工作温度：-40℃到+110℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 黑色

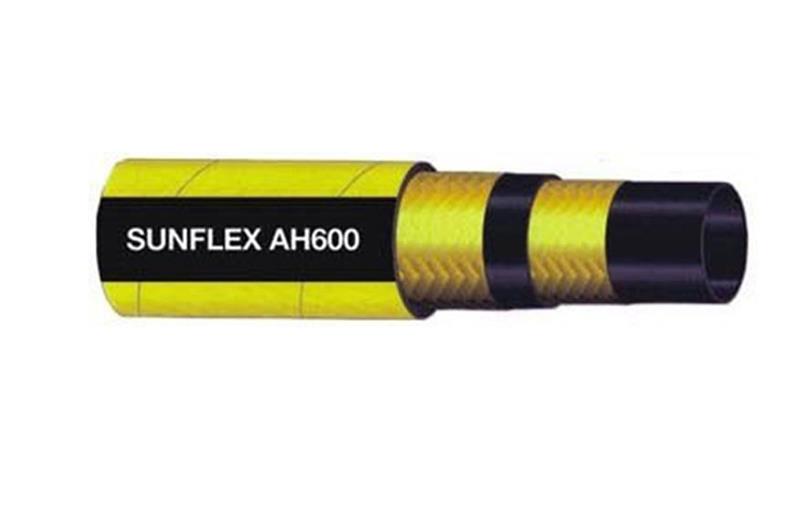

字样： SUNFLEX AH 600 AIR/WATER HOSE WPSI 600

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
AH600-0050 13 1/2 24 15/16 40 600 120 1800 0.51 0.34 90
AH600-0075 19 3/4 31 1-7/32 40 600 120 1800
 0.74 0.50 95
AH600-0100
 25 1 38 1-11/16 40
 600 120 1800
 0.91 0.65 125
AH600-0125 32 1-1/4 45 1-57/64 40
 600 120 1800
 1.51 1.04 160
AH600-0150 38 1-1/2 56 2-7/32 40
 600 120 1800 1.93 1.30 190
AH600-0200 51 2 69 2-11/16 40
 600 120 1800
 2.40 1.65 225
AH600-0250
 63.5 2-1/2 81 3-1/8 40
 600
 120
 1800
 2.90 2.00 315
AH600-0300 76 3 95 3-7/8 40
 600
 120
 1800
 4.68 3.21 380
AH600-0400 102 4 120 5 40 600
 120
 1800
 7.34 5.04 510
