Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

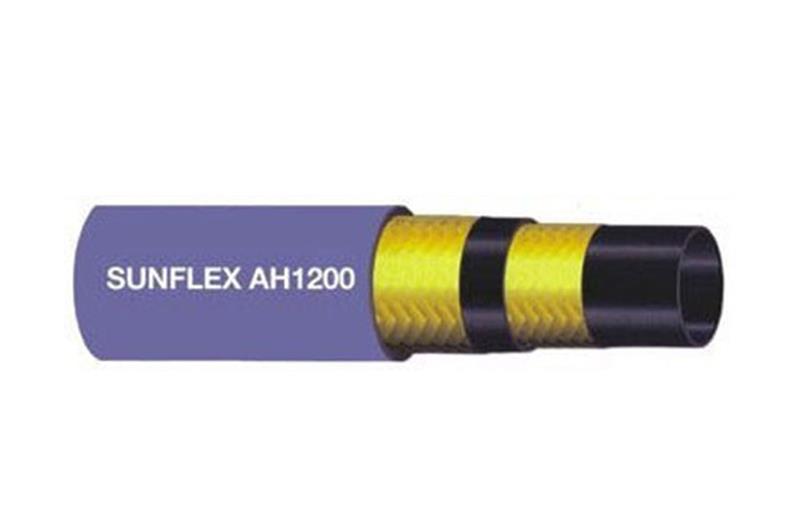

为高温压缩空气特设的产品,应用于采矿,钻井业。编织结构:直径38毫米和51毫米。螺旋结构:直径76毫米。

技术参数

内 层:黑色、溴化丁基胶,耐热,耐油雾
增强层:高弹性钢芯夹层
外层:蓝色三元乙丙(EPDM),耐磨损,耐臭氧,微型针孔
工作温度:-40℃到+120℃,最高可到232℃
工作压力: 1200PSI
尺寸: 2”(内径)51mm*70mm
管长: 61米(200英尺),其它长度也可以按需求提供
印记: 蓝色
字样: SUNFLEX AH 1200 HEAVY DUTY AIR HOSE WPSI 1200

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
AH1200-0200 50.8 2 70 2-3/4 80 1200 320 4800 3.68 2.49 612
AH1200-0300 76.2 3 98 3-7/8 80 1200 320 4800
5.99 4.06 910
