Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

该产品为心轴高强水吸入/排放用管，用于处理污水，废水，泥浆等。

技术参数

内 层：黑色、光滑，合成橡胶，耐酸碱度范围PH值5-8
增强层：高强度合成芯及螺旋钢丝
外层：黑色，光滑聚合橡胶，耐侵蚀，耐磨损
工作温度：-40℃到+85℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 黄色

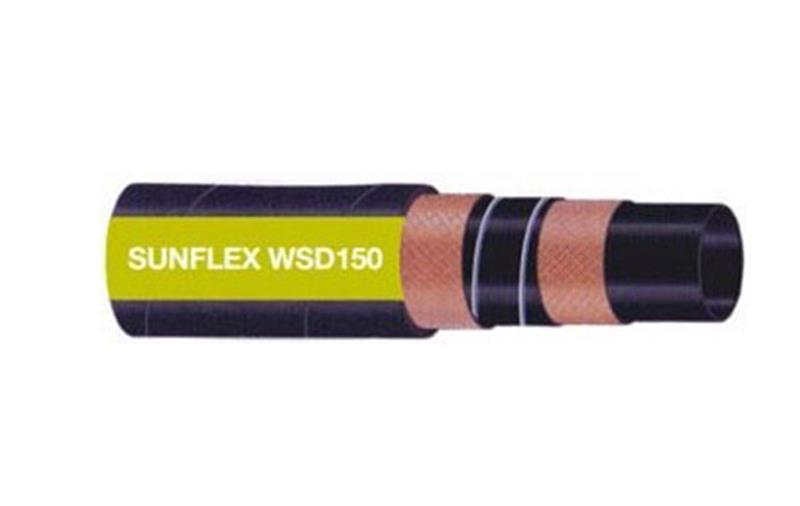

字样： SUNFLEX WSD 150WATER SUCTION/DELIVERY HOSE WPSI 150

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
WSD150-0125 32 1-1/4 43 1-21/32 10 150 30 450 0.97 0.67 110
WSD150-0150 38 1-1/2 50 1-15/16 10 150
 30 450
 1.27 0.87 135
WSD150-0200
 51 2 63 2-15/32 10
 150
 30
 450
 1.72 1.18 200
WSD150-0250
 63 2-1/2 77 3-1/32 10
 150
 30
 450
 2.37 1.63 270
WSD150-0300
 76 3 89 3-1/2 10
 150
 30
 450
 2.79 1.91 340
WSD150-0338
 86 3-3/8 99 3-29/32 10 150
 30
 450
 3.80 2.60 360
WSD150-0350
 90 3-1/2 103 4-1/32 10
 150
 30
 450
 3.86 2.65 400
WSD150-0400
 102 4 118 4-9/16 10
 150
 30
 450
 4.33 2.98 450
WSD150-0450
 115 4-1/2 132 5-13/64 10
 150
 30
 450
 5.20 3.58 500
WSD150-0500
 127 5 144 5-5/8 10
 150
 30
 450
 7.23 4.97 650
WSD150-0600
 152 6 171 6-3/4 10
 150
 30
 450
 10.18 7.00 700
WSD150-0800
 203 8 227 8-15/16 10
 150
 30
 450
 14.80 9.94 1100
WSD150-1000
 254 10 280 11-1/8 10
 150
 30
 450
 16.34 10.98 1600
WSD150-1200
 305 12 336 13-15/64 10
 150
 30
 450
 24.63 16.55 2080
