Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

高质量食物及饮料输送用管，特别适用于油及油脂类食物，也适用于啤酒，葡萄酒，饮用水输送。

技术参数

内层：白色、光滑，满足食物传输用的合成橡胶，符合美国食品及药物管理局（F.D.A）和欧洲(EUROPEAN)标准
增强层：高强度合成芯
外层：蓝色，光滑聚合橡胶，耐磨损
工作温度：-40℃到+85℃
管长：40米（132英尺），其它长度也可以按需求提供
印记：白色

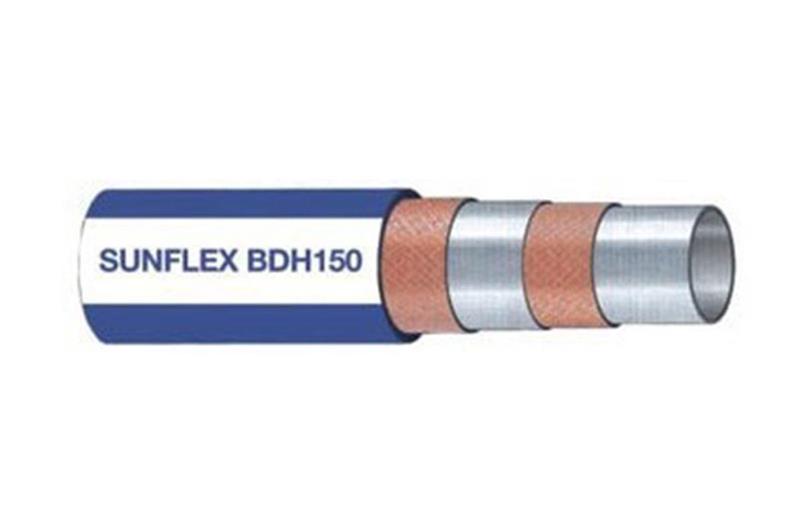

字样：SUNFLEX BDH 150 FOOD BEVERAGE DELIVERY HOSE WPSI 150

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft
BDH150-0125 32 1-1/4 48 1-57/64 10 150 30 450 1.42 0.95
BDH150-0150 38 1-1/2 56 2-13/64 10 150
 30 450
 1.89 1.27
BDH150-0200
 51 2 67 2-41/64 10
 150
 30
 450
 2.11 1.41
BDH150-0250
 63.5 2-1/2 83.5 3-9/32 10
 150
 30
 450
 3.33 2.24
BDH150-0300
 76 3 102 4 10
 150
 30
 450
 5.00 3.35
BDH150-0400
 102 4 126 5-61/64 10
 150
 30
 450
 6.43 4.31
