Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search

应用

工矿项目中，泥、泥水混合物，吸入排放用管

技术参数

内层：黑色光滑合成橡胶，耐酸碱度范围PH值5-8
加强层：高强度合成芯及螺旋钢丝
外层：黑色光滑聚合橡胶，耐侵蚀耐磨损
温度范围：-40℃到85℃
管长：61米，其他长度可按要求提供

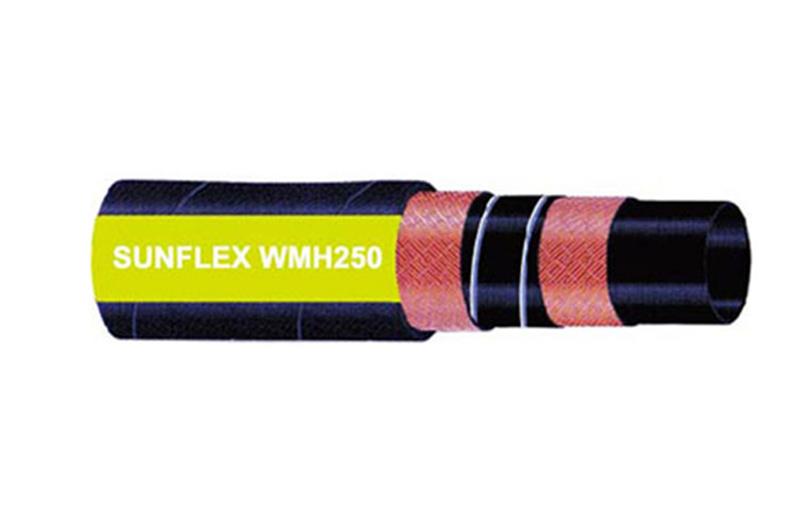

字样：SUNFLEX WMH250 MUD SUCTION/DELIVERY HOSE WPSI 250

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
WMH250-0200 51 2 65 2-9/16 17 250 51 700 1.80 1.23 210
WMH250-0250 63 2-1/2 80 3-3/16 17 250 51 700 2.65 1.73 260
WMH250-0300 76 3 93 3-21/32 17
 250 51 700 2.87 1.97 310
WMH250-0400 102 4 120 4-47/64 17 250 51 700 4.86 3.33 450
WMH250-0500 127 5 149 5-7/8 17 250 51 700 6.60 4.43 580
WMH250-0600 152 6 174 6-55/64 17 250 51 700 7.80 5.24 700
WMH250-0800 203 8 227 8-15/16 17
 250
 51
 700 15.96 10.72 1300
