Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search

应用

用于吸入和输送具有磨损性的泥浆材料

技术参数

内胶层:9mm天热橡胶,具有超耐磨性(S.A.R)
加强层:4层高强度抗拉棉线编织,螺旋钢丝
外胶层:2mm黑色天热橡胶,超耐磨(S.A.R)
温度范围:-40℃到85℃
印记:黄色

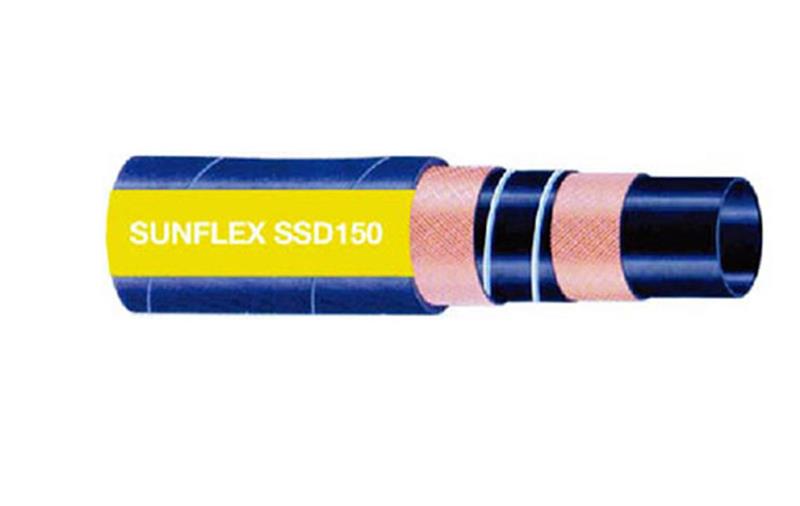

字样:SUNFLEX SSD150 SUCTION/DELIVERY HOSE WPSI 150

product details

产品型号 软管内径 软管外径 工作压力 弯曲半径 重量
PART NO. mm inch mm bar psi mm kg/m
SSD150-0600 152 6 185 10 150 1900 12.12
SSD150-0800
204 8 236 10 150 2620 17.94
SSD150-1000
254 10 290 10 150 4760 25.42
SSD150-1200
305 12 344 10 150 5600 29.70
