应用

芯轴橡胶管，用于灰浆，泥浆，石膏，混凝土浇灌

技术参数

内 层： 黑色，光滑，特殊合成橡胶，耐磨损
增强层：高强度合成芯
外层：黑色，光滑合成橡胶，耐侵蚀，磨损，臭氧
工作温度：-40℃到+85℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 白色

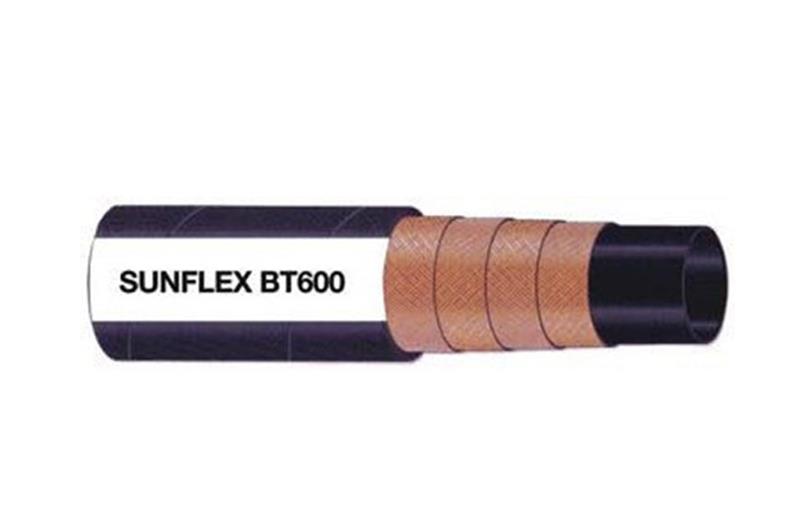

字样： SUNFLEX BT600 GROUTING HOSE WPSI 600

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft
BT600-0125 32 1-1/4 46 1-13/16 40 600 120 1800 1.10 0.75
BT600-0150 38 1-1/2 54 2-1/8 40 600 120 1800
 1.50 1.03
BT600-0200
 51 2 68 2-11/16 40
 600 120 1800
 2.20 1.51
BT600-0250 63 2-1/2 83 3-1/4 40
 600 120 1800
 3.26 2.23
BT600-0300 76 3 98 3-7/8 40
 600 120 1800 3.71 2.54
BT600-0400 102 4 130 5-1/8 40
 600 120 1800
 6.88 4.71
