应用

用于以抽气或重力等方式吸入和传输水泥,沙,砂砾,颗粒等

技术参数

内 层:黑色,光滑合成物,长效耐磨损性,抗静电
增强层:高强度合成芯及螺旋钢丝
外层:黑色,光滑合成橡胶,耐磨损,侵蚀,臭氧
工作温度:-40℃到+85℃
管长: 61米(200英尺),其它长度也可以按需求提供
印记: 绿色

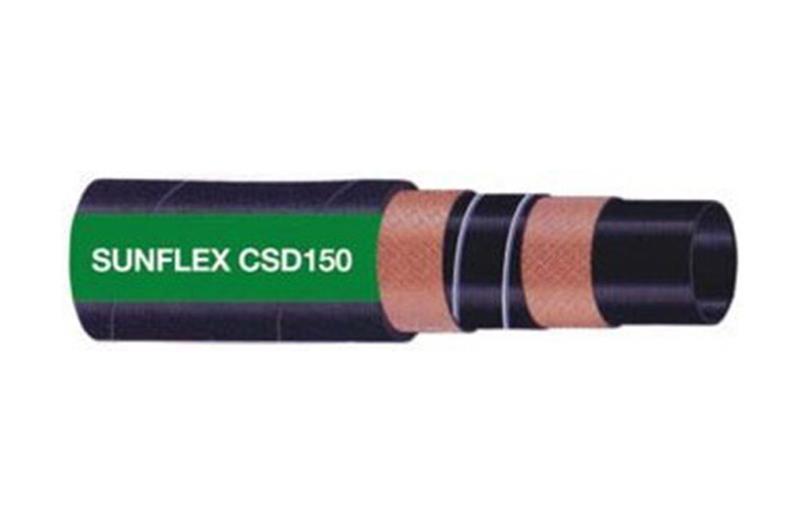

字样: SUNFLEX CSD 150 BILK MATERIAL SUCTION/DELIVERY HOSE WPSI 150

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
CSD150-0300 76 3 98 3-55/64 10 150 30 450 2.90 1.92 325
CSD150-0400 102 4 124 4-7/8 10 150 30 450
4.67 3.11 480
CSD150-0500
127 5 152 5-63/64 10
150 30 450
5.80 3.90 625
CSD150-0600 152 6 174 6-27/32 10 150 30 450 10.10 6.25 780
