Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search

应用

用于混凝土浇铸传送

技术参数

内胶层：高耐磨、导静电、抗辐射橡胶
加强层：高抗拉钢丝缠绕层
外胶层：耐磨，耐氧化，耐侵蚀，有微型针孔-合成橡胶
温度范围：-40℃到70℃
印记：黄色

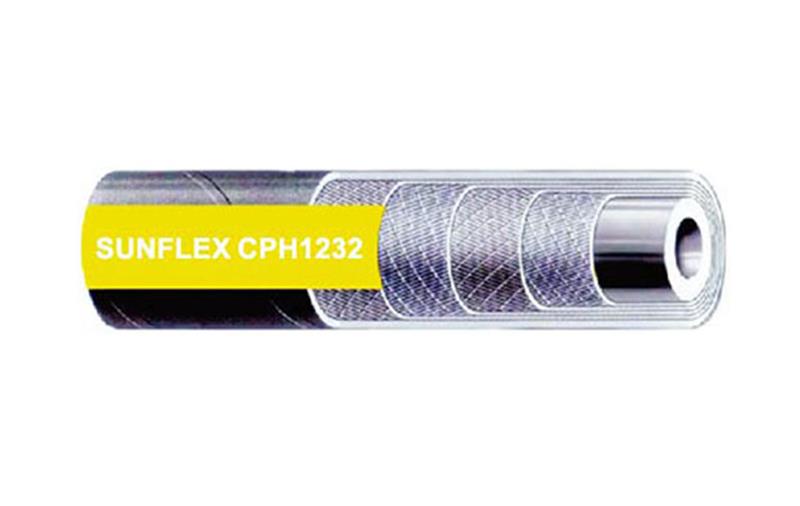

字样：SUNFLEX CPH1232 CONCRETE PUMP HOSE WPSI 1232

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
CPH1232-0200 50.8 2 70 2-3/4 85 1232 200 2900 3.41 2.36 508
CPH1232-0250 63.5 2-1/2 88 3-15/32 85 1232 200 2900 4.97 3.43 635
CPH1232-0300 76.2 3 102 4-1/64 85 1232 200 2900 6.58 4.54 762
CPH1232-0400 101.6 4 130 5-1/8 85 1232 200 2900 9.38 6.48 1016
CPH1232-0500 127 5 155 6-7/64 85 1232 200 2900 10.95 7.56 1270
CPH1232-0600 152.4 6 184 7-1/4 85 1232 175 2900 13.49 9.32 1524
