应用

用于吸入和输送干块状材料，砂砾，石子和干水泥等

技术参数

内胶层：耐磨耐静电橡胶
加强层：高强度合成织物编织，螺旋钢丝和防静电铜线
外胶层：波纹型特殊合成橡胶，耐磨耐氧化耐侵蚀
温度范围：-40℃到70℃
印记：黑色

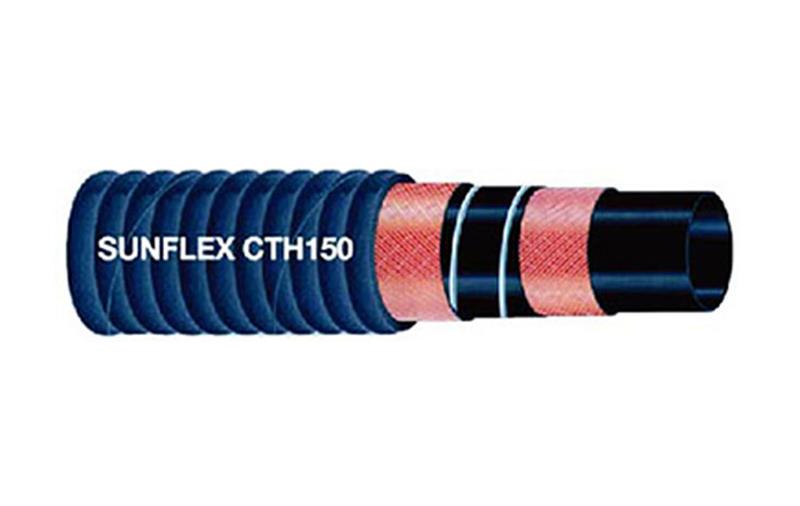

字样：SUNFLEX CTH150 CEMENT TANKER HOSE WPSI 150


product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
CTH150-0100 25.4 1 37.5 1-31/64 10 150 30 450 0.81 0.54 101
CTH150-0125 32 1-1/4 44 1-47/64 10 150 30 450 0.98 0.66 128
CTH150-0150 38 1-1/2 51 2 10 150 30 450 1.31 0.88 152
CTH150-0200 50.8 2 64.5 2-17/32 10 150 30 450 1.78 1.2 203
CTH150-0250 63.5 2-1/2 77.5 3-1/16 10 150 30 450 2.38 1.6 254
CTH150-0300 76.2 3 90.5 3-9/16 10 150 30 450 3.04 2.04 304
CTH150-0350 90 3-1/2 106 4-11/64 10 150 30 450 3.90 2.62 360
CTH150-0400 101.6 4 119 4-11/16 10 150 30 450 4.66 3.13 457
CTH150-0500 127 5 147 5-25/32 10 150 30 450 6.82 4.58 635
CTH150-0600 152.4 6 173 6-13/16 10 150 30 450 8.81 5.92 760
CTH150-0800 203.2 8 227 8-15/16 10 150 30 450 14.07 9.45 1219
CTH150-1000 254 10 279 10-63/64 10 150 30 450 16.99 11.42 1524
