Industrial Product

Our company design, research and develop hose,fittings and hose assembly, size DN6mm to DN 610mm with working pressure from 1 bar to 1000 bar, Applicable media include air, water, ethanol water, high temperature steam, Acid-base chemicals, food and beverage, cement slurry, concrete and various oil products, which widely used in construction Machinery, plastics machinery , Wind power, shipbuilding, petrochemical, iron and steel manufacturing and other heavy industries.

Indu

Industry search
应用

具有足够强度但不失柔韧性；用于油罐卡车中装卸热沥青。

技术参数

内 层：黑色，光滑，聚丙烯合成物
增强层：钢丝夹层及螺旋钢丝
外层：黑色，光滑特种合成橡胶，耐磨损，侵蚀，臭氧，焦油，油渍
工作温度：-15℃到+185℃
管长： 61米（200英尺），其它长度也可以按需求提供
印记： 白色

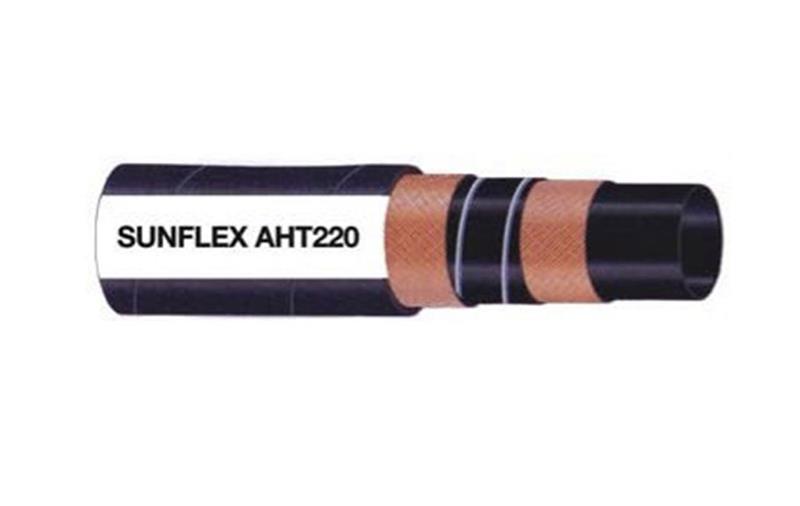

字样： SUNFLEX AHT 220 ASPHALT HOSE WPSI 220

product details

产品型号 软管内径 软管外径 工作压力 爆破压力 重量 弯曲半径
PART NO. mm inch mm inch bar psi bar psi kg/m lbs/ft mm
AHT220-0150 38.0 1-1/2 56 2-13/64 15 220 45 660 1.87 1.26 228
AHT200-0200
 50.8 2 71 2-51/64 15 220 45 660 2.38 1.90 305
AHT200-0250
 63.5 2-1/2 81 3-3/16 15 220 45
 660
 3.00 2.01 381
AHT200-0300
 76.2 3 94 3-45/64 15 220 45
 660
 3.56 2.40 457
AHT200-0350
 90.0 3-1/2 112 4-13/32 15 220
 45
 660
 5.05 3.40 540
AHT200-0400
 101.6 4 126 4-31/32 15 220
 45
 660
 6.19 4.16 610
AHT200-0500
 127.0 5 155 6-7/64 15 220
 45
 660
 9.02 6.06 762
AHT200-0600
 152.4 6 184 7-1/4 15 220
 45
 660
 12.43 8.35 914
